58646 Tamiya Konghead 6X6 G6-01 1:18 Kit No Esc Included

TAM-58646

£175.00



Out of stock.

Out of stock.





Dominate the Dirt

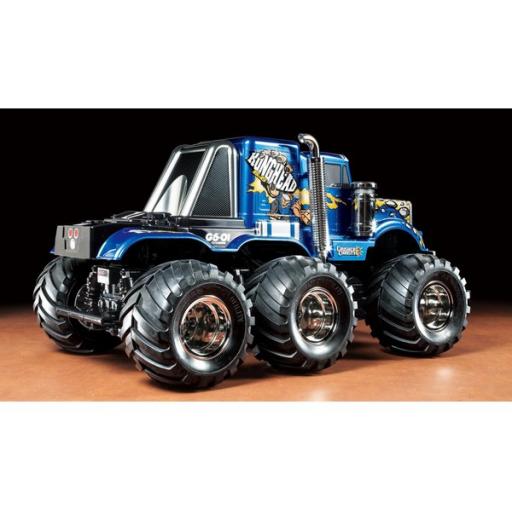

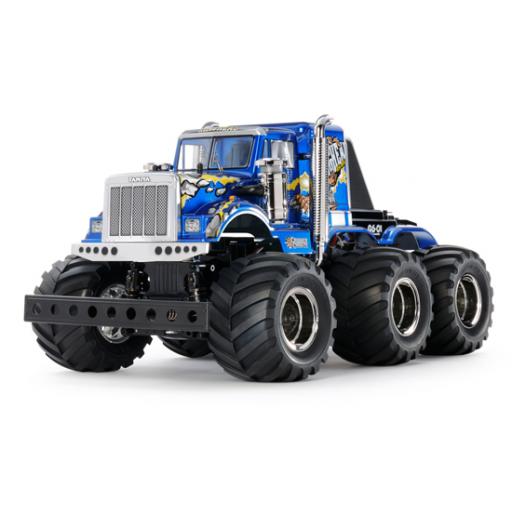

This R/C model assembly kit creates the Konghead 6x6. With its big sleeper cab, flat nose and radiator grille, its polycarbonate body takes inspiration from U.S. trailer heads. Metal-plated air cleaner and muffler parts give an authentic finish. Marking stickers are included to decorate the body with style. The new G6-01 chassis is a newly-designed 6WD unit that can take on slopes of up to 40 degrees. See below for much more information!



Fun, Innovative & Great Performance!

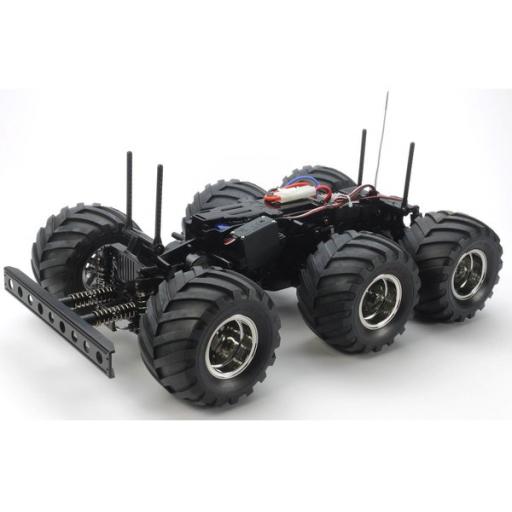

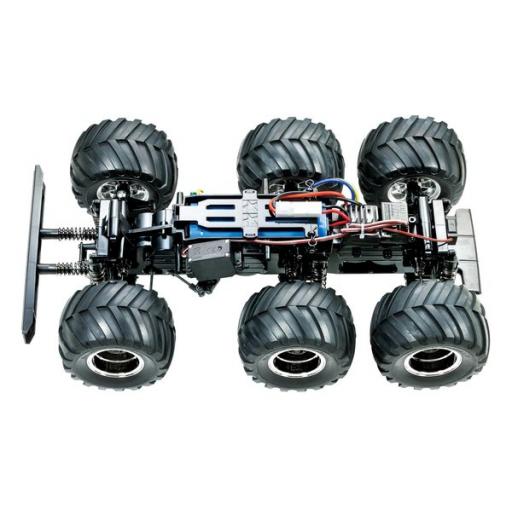

The fun G6-01 chassis is based around a tough, slimline monocoque frame and offers excellent off-road performance thanks to a 6-wheel drive system. Power is provided by a motor behind the front wheels, and transmitted to front, center and rear wheels via gears. The gearbox is sealed to protect from dust and debris, and integrated into the frame; it has built-in front, center and rear differential gears to provide smooth cornering. 6-wheel double wishbone suspension is fitted with friction dampers, while chrome-plated deep rim wheels are paired with 113mm diameter tires. A 2-piece steering tie-rod setup utilizes the servo on the left for excellent response. With suspension reassembly and a separately-sold transmitter with 4WS function and R/C equipment, the rear wheels can be made steerable.




‚òÖDouble wishbone suspension is paired with friction dampers for excellent off-road performance.

‚òÖSmooth handling thanks to the 2-piece steering tie-rod and steering servo positioned on the left.

‚òÖThe motor powers three differential gears inside the monocoque, in a gear-driven 6WD setup.



Specifications
‚òÖLength: 453mm, Width: 270mm, Height: 234mm ‚òÖWheelbase: 173mm + 126mm ‚òÖTread: 200mm (Front, Center and Rear) ‚òÖTire Width/Diameter: 68mm/113mm ‚òÖMonocoque Frame ‚òÖGear-Driven 6WD ‚òÖ3-Bevel Differential Gears ‚òÖ2-Piece Steering Tie-Rod ‚òÖ6-Wheel Independent Double Wishbone Suspension ‚òÖGear Ratio = 18.03:1 ‚òÖType 540 Motor ‚òÖRequires an Electronic Speed Controller (sold separately)



Separately Required Items
‚òÖ2-Channel R/C Unit with ESC ‚òÖBattery Pack & Charger ‚òÖR6/AA/UM3 batteries for transmitter
